imagiQ2 Product Specifications

Feature Description
Weight capacity 661lb / 300kg

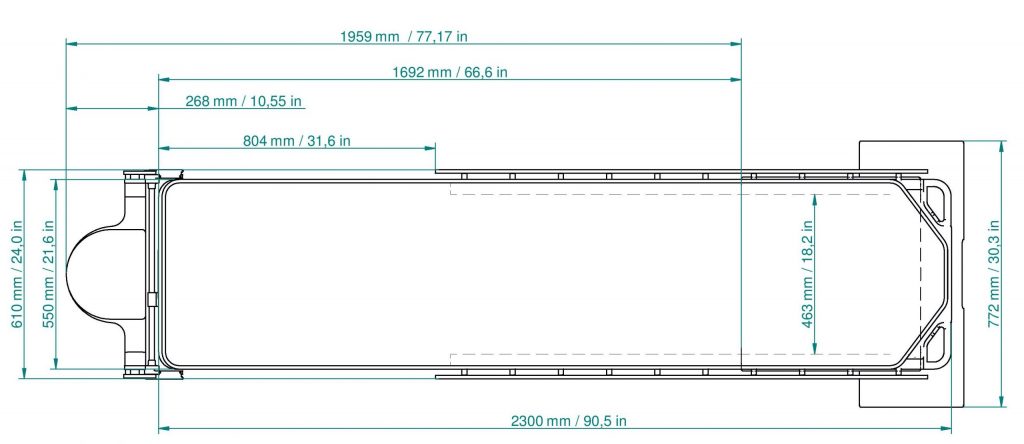

Table top length , width L= 90.5” / 230 cm ; W= 21.6” / 55 cm
Translucent length 77.17” / 196 cm with headrest (66.6” / 169.2 cm without headrest)
Translucent table top Proprietary, carbon fiber structure. Al 0.4 mm
Float & lock STILLE True Free Float® and STILLE quick-lock system
Float (longitudinal, lateral, diagonal) 35.4” x 9.9 ” x 36.8” / 90 cm x 25 cm x 93.4 cm
Operation conditions 100% continuous
AC power: 100-250 Volts Direct AC power + battery DC power
Length, width, height L = 92” / 234 cm; W = 30.3” / 77.2 cm; H = 28”- 43” / 71-109 cm
Trendelenburg ±20°
Lateral roll (iso-roll) ±15° (isocentric roll keeps image focus & reduces scattered radiation)
Wheels and steering 4 swiveling back wheels
Side rails Fixed along 2/3 of the table top
Detachable table top Yes, future-proof platform for extended use and easy transport.
Transport handle Yes, silver
